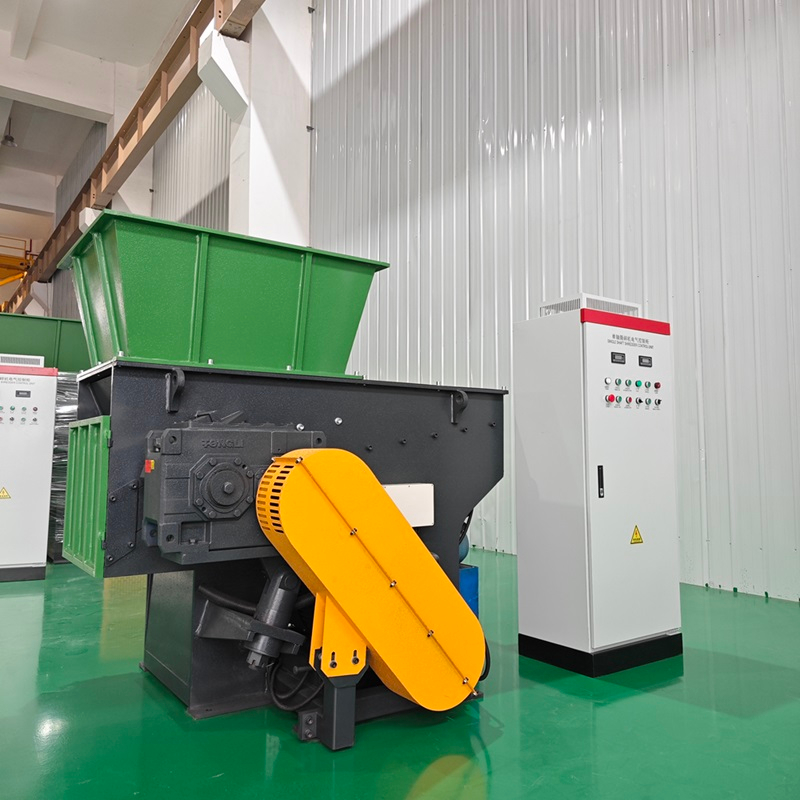

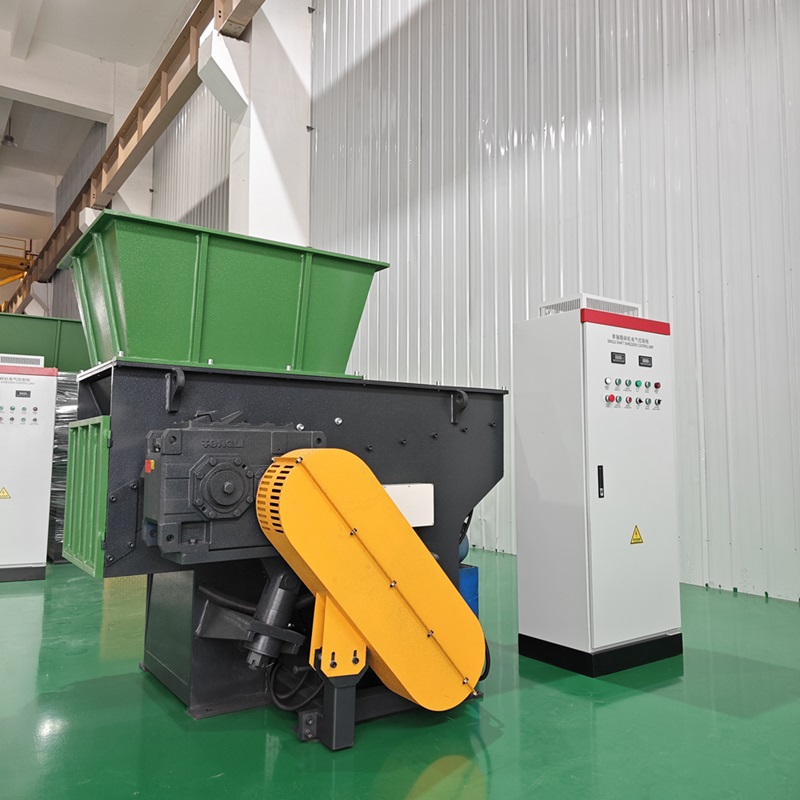

PET Fiber Shredder Machine
The GE-S series shredders have a high degree of automation and high production efficiency, enabling users to economically and effectively recycle large-caliber plastic waste, wood,domestic garbage，pipes and lumps and so on.
| Quantity: | |
|---|---|
Introduction of GE-S series shredder
The GE-S series shredders have a high degree of automation and high production efficiency, enabling users to economically and effectively recycle large-caliber plastic waste, wood,domestic garbage，pipes and lumps and so on.
The single shaft shredder consists of a motor, a hard-toothed reducer, a rotating blade shaft, imported moving blades, fixed blades, a frame, a base, a box, a hydraulic cylinder, an oil pump and other main components.
The frame is equipped with a fixed blade, and the rotating blade shaft is equipped with a removable embedded moving blade. The moving blade is a four-corner blade that can be used. After being blunted, it can be removed and the angle can be changed. It is composed of a heat-treated structure. The hardness after treatment reaches HRC60° or above, so it has a long service life, strong cutting ability, high production capacity, and effectively reduces labor intensity and improves the working environment.
Applications
Parameters
Model | GE-S600 | GE-S800 | GE-S1000 | GE-S1200 |
Dimensions | 2000*1300*1900mm | 2800*1500*2200mm | 3200*1700*2400mm | 3900*2100*2500mm |
Feeding size | 600*950mm | 800*950mm | 1000*1000mm | 1200*1100mm |
Motor power | 22kw | 37kw | 55kw | 75kw |
Rotation diameter | 300mm | 390mm | 460mm | 460mm |
Length of blade axis | 600mm | 800mm | 1000mm | 1200mm |
Rotating speed | 80rpm | 80rpm | 80rpm | 80rpm |
Number of rotary blade | 33pcs | 56pcs | 60cs | 72pcs |
Number of fixed blades | 1pcs | 1pcs | 1pcs | 1pcs |
Hydraulic station power | 2.2kw | 3kw | 5.5kw | 7.5kw |
Working pressure | 6-12Mpa | 6-12Mpa | 6-12Mpa | 6-12Mpa |
Weight | 2500kg | 4500kg | 5500kg | 8500kg |
Capacity | 300-500kg/h | 500-800kg/h | 800-1500kg/h | 1500-2000kg/h |
Machine details
| HopperSpecial designed hopper to avoid material flying out. The machine is fitted with a large filling hopper and can be loaded by conveyor belt, forklift, crane or wheel-loader. This funnel can be adapted to suit individual requirements and guarantees a continuous and economical supply of material. |
Screen meshFlexible screens that can meet various needs and support customization. Circular hole screens·Hexagonal screens·Fishbone screens Strictly control the discharge size and crush the particles evenly Pneumatic springs assist in opening the screen to improve operating efficiency |
|
| Blade shaftBaosteel 42CRMO blade shaft, anti-winding and non-blocking. Multiple processes are rigorously processed to stably and efficiently increase the crushing rate by 50% |
BodyThe iron frame is thick, can resist high torque, and is very strong. The main chassis is welded and tempered after welding to ensure the strength and assembly accuracy of the chassis. |
|
| Material pushingCopper guide bar push box, continuous and stable feeding. Dual speed design: fast push when less material, slow push when more material |
Special gearbox designThe lifting gearbox does not bear the force on the main shaft, thus protecting the main shaft and preventing the gearbox from shaking during operation. |
|
| Control System of ShredderThe electrical system adopts Siemens PLC programming control and whole process automation. After commissioning, the operator only needs to press start and stop. Save labor costs and ensure the safety of the operating environment. |
Electrical componentsAll using Siemens and Schneider brand. |
|
About Us
You are welcome to visit our factory at any time
● Siwellge is the original manufacturer.
● If you are interested in our products and we can meet your requirements, you can visit our factory,one hour railway from Shanghai.
● The significance of visiting suppliers is that seeing is believing. We have our own manufacturing and development research team. We can send engineers to you to ensure efficient after-sales service.
See how Siwellge ensures quality
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and have accumulated professional processing methods in the past few years.
● Each component before assembly requires strict control by inspectors.
● Each conference is led by a master with more than 15 years of work experience.
● After all equipment is completed, we will connect all machines and run the complete production line for at least 12 hours to ensure the stable operation of the customer's factory.
Siwellge After-Sales Service
● After finishing the production, we will debug the production line, take photos, videos and send them to customers via email or instant tools.
● After commissioning, we will pack the equipment according to standard export for shipment. According to customer requirements, we can arrange our engineers to go to the customer's factory for installation and training.
● Engineers, sales managers, and after-sales service managers form an after-sales team, following customers' projects online and offline.
Certificate
Shipment
FAQ
Q1: Is it all right to make customer's own brand name?
A1: Yes.We support OEM ODM service
Q2: Are you a manufacturer or trading company?
A2: Manufacturer.You can visit our factory.
Q3: When can I get the detailed quotation?
A3: In 24 hours
Q4: Where is your loading port?
A4: Shanghai port
Q5: How soon we can get response from your team?
A5: Email in 12 hours,Whatsapp in 1 hour
Q6: Does your product have warranty service?
How long is the warranty period?
A6: Yes we have. 13 months
